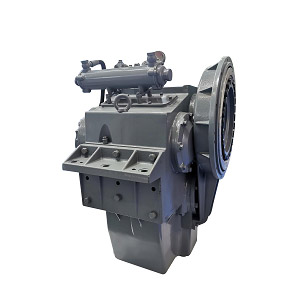

船用齒輪箱
發表時間 ： 2020/09/10 00:00
船用齒輪箱選型須知：
船用齒輪箱具有倒順、離合、減速、和承受螺旋槳推力的功能，與主機配套，組成船用動力機組。
傳遞能力是指發動機的持續功率與額定轉速之比值，減速比與傳遞能力上下對應，選用時應小于參數表的數值。
齒輪箱與發動機軸系不允許采用剛性連接，支架推薦安裝在同一剛性支架上。如果發動機安裝在彈性支架上，齒輪箱安裝在剛性支架上，應選配合適的高彈聯軸器。
| 船用齒輪箱技術參數 | |||||||
| 型號 | 轉速輸入范圍(r/min) | 減速比 | 傳遞能力(kw/rpm) | 額定推力(KN) | 中心距 | 長x寬x高 | 凈重 |
| 06 | 1000-2100 | 2.52 3.05 3.50 | 0.004 | 1.8 | 124 | 350x316x482 | 58 |
| 16A | 1000-2100 | 2.07 2.48 2.95 3.35 3.83 | 0.012 | 3.5 | 135 | 442x325x563 | 84 |
| 26 | 1000-2500 | 2.50 3.00 | 0.0199 | 5 | 135 | 473.5x365x830 | 92 |
| 3.50 4.00 | 0.0190 0.0177 | ||||||
| 100 | 1500-3000 | 1.60 2.00 | 0.009 | 3 | 100 | 236x390x420 | 75 |
| 2.55 3.11 | 0.007 | ||||||
| 3.59 3.88 | 0.006 | ||||||
| 125 | 1500-3000 | 2.03 2.46 | 0.020 | 5.5 | 125 | 291x454x485 | 115 |
| 3.04 3.57 4.05 4.39 4.70 | 0.018 0.016 0.014 0.013 0.011 | ||||||
| 142 | 1500-2500 | 1.97 2.52 3.03 | 0.030 | 8.5 | 142 | 308x520x540 | 140 |
| 3.54 3.95 4.50 5.06 5.47 | 0.026 0.023 0.019 0.016 0.013 | ||||||
| 40 | 750-2000 | 2.07 2.96 | 0.0294 | 8.8 | 142 | 490x670x620 | 225 |
| 3.44 | 0.0235 | ||||||
| 170 | 1500-2500 | 1.97 2.52 3.04 3.54 3.96 | 0.039 | 16 | 170 | 485x610x656 | 240 |
| 4.50 5.06 | 0.031 | ||||||
| 5.47 5.88 | 0.027 | ||||||
| 120B | 750-1800 | 2.03 2.81 | 0.088 | 25 | 190 | 605x744x770 | 400 |
| 3.73 | 0.044 | ||||||
| 120C | 1000-2500 | 1.36 1.48 1.61 1.94 2.45 | 0.10 | 25 | 180 | 432x440x650 | 225 |
| 2.96 3.35 | 0.09 0.08 | ||||||
| 135 | 750-2000 | 2.03 2.59 3.04 3.62 4.11 | 0.100 | 29.4 | 225 | 578x744x830 | 470 |
| 4.65 5.06 5.47 5.81 | 0.093 0.088 0.077 0.070 | ||||||
| 138 | 100-2500 | 2.00 2.52 3.00 357 4.05 4.45 | 0.11 | 30 | 225 | 520x792x760 | 360 |
| D138 | 1000-2500 | 5.05 5.63 | 1.110 | 40 | 296 | 494x800x870 | 415 |
| 6.06 6.47 | 0.099 0.093 | ||||||
| 242 | 1000-2500 | 2.00 2.54 3.04 3.52 3.95 4.53 | 0.103 | 30 | 242 | 442x774x763 | 385 |
| 5.12 5.56 5.88 | 0.100 0.094 0.074 | ||||||
| 270 | 750-2500 | 3.00 4.05 4.53 5.12 | 0.147 | 39.2 | 270 | 594x810x868 | 675 |
| 5.50 5.95 | 0.134 0.110 | ||||||
| 6.39 6.82 | 0.088 | ||||||
| 300 | 700-2500 | 1.87 2.04 2.54 | 0.257 | 50 | 264 | 786x930x864 | 740 |
| 3.00 3.53 | 0.243 0.221 | ||||||
| 4.10 4.47 4.61 | 0.184 | ||||||
| 4.94 5.44 | 0.147 0.125 | ||||||
| J300 | 750-2500 | 2.04 2.54 3.0 3.47 | 0.280 | 60 | 264 | 786x930x864 | 740 |
| 3.95 | 0.257 | ||||||
| D300A | 1000-2500 | 4.00 4.48 5.05 | 0.257 0.243 0.221 | 60 | 355 | 786x1010x1041 | 940 |
| 5.52 5.90 6.56 | 0.184 | ||||||
| 7.06 7.63 | 0.147 0.125 | ||||||
| T300 | 1000-2300 | 4.73 4.95 5.51 6.03 6.65 7.04 | 0.243 | 70 | 355 | 722x980x1106 | 1120 |
| 7.54 8.02 | 0.221 | ||||||
| 8.47 | 0.200 | ||||||
| T300/1 | 1000-2300 | 8.94 9.45 | 0.196 | 70 | 355 | 772x980x1106 | 1120 |
| 400 | 1000-1800 | 1.50 1.77 2.04 2.50 2.86 3.00 3.25 3.33 3.42 | 0.331 | 82 | 264 | 641x1010x890 | 820 |
| 4.06 | 0.279 | ||||||
| 4.61 4.94 | 0.190 | ||||||
| D400A | 1000-1800 | 3.96 4.33 4.43 4.70 5.00 | 0.331 | 82 | 355 | 641x1010x988 | 1100 |
| 5.53 | 0.293 | ||||||
| 5.71 5.89 | 0.272 | ||||||
| T400A | 1000-2100 | 6.09 6.49 6.93 | 0.331 | 82 | 375 | 784x992x1130 | 1450 |
| 7.42 7.96 8.40 | 0.309 0.287 0.265 | ||||||
| 9.00 9.47 | 0.243 | ||||||
| T400A-1 | 1000-2100 | 8.15 8.69 9.27 | 0.331 | 120 | 465 | 869x1100x1275 | 1500 |
| 9.94 10.60 11.37 | 0.316 0.297 0.274 | ||||||
| 12.00 12.50 | 0.262 | ||||||
| 13.96 | 0.204 | ||||||
| 600A | 1000-2100 | 2.00 2.48 3.00 | 0.48 | 90 | 320 | 745x1214x1126 | 1300 |
| 3.58 3.89 | 0.44 0.40 | ||||||
| D600A | 1000-2100 | 4.18 4.43 | 0.48 | 90 | 415 | 745x1214x1271 | 1550 |
| 4.70 5.00 | 0.46 0.44 | ||||||
| 5.44 5.71 | 0.40 | ||||||
| T600A | 1000-2100 | 6.06 6.49 | 0.44 0.40 | 90 | 415 | 821x1214x1271 | 1650 |
| 6.97 7.51 | 0.37 | ||||||
| 8.04 8.66 9.35 | 0.33 0.29 0.28 | ||||||
| T600A-1 | 1000-2100 | 7.04 7.69 8.23 | 0.441 | 140 | 500 | 878x1224x1346 | 1700 |
| 8.82 9.47 | 0.412 0.400 | ||||||
| 10.10 10.80 | 0.375 | ||||||
| 11.65 12.57 13.64 14.44 15.91 | 0.353 0.331 0.272 0.257 0.204 | ||||||
| D800 | 600-1800 | 3.00 3.43 3.96 4.17 4.39 | 0.625 | 110 | 450 | 1056x1280x1341 | 2200 |
| 4.90 5.47 5.89 | 0.588 0.551 0.515 | ||||||
| T800 | 600-1800 | 4.95 5.57 5.68 5.93 6.43 | 0.625 | 140 | 450 | 1056x1280x1425 | 2700 |
| 6.86 7.33 7.84 8.40 | 0.588 0.551 0.515 0.480 | ||||||
| T800-1 | 600-1800 | 6.91 7.28 7.69 8.13 8.60 9.12 9.68 | 0.625 | 220 | 582 | 1152x1360x1557 | 3200 |
| 10.30 10.98 11.76 12.43 13.17 13.97 14.85 15.82 16.58 17.91 20.12 | 0.609 0.575 0.549 0.520 0.491 0.463 0.435 0.408 0.382 0.378 0.278 | ||||||
